GENIE SCISSOR LIFT GEN 5 CONTROL BOX # 100840

Options:
Specs:
Condition:
Quantity: 9

Description
Buy now

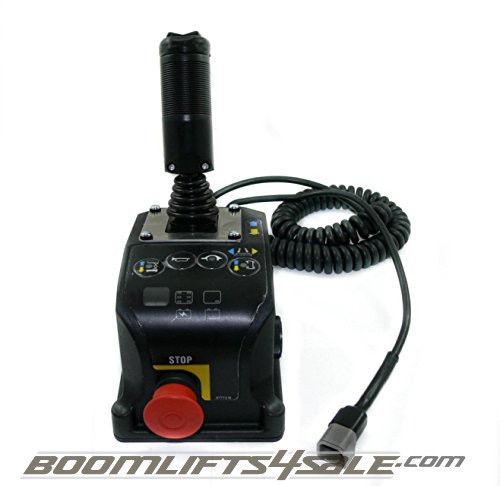

NEW GENIE GEN 5 CONTROL BOX.

PN 100840 -- CONTROL BOX PLATF,GEN 5
MOUNTING BRKTS. AND HRD WARE NOT INCLUD.
COMPONENT PARTS AVAILABLE:
P/N 109503 PCB & P/N 97772 OVERLAY DECAL
_______________________________________
SERVICE KIT TO UPGRADE FROM GEN 2,3 OR 4
ECN 500362
________________________________________
AFTER S/N GS6805-44699 REFER TO
BEFORE S/N 75000 REFER TO P/N 96421
COIL CORD WIRE GAGE CHANGED FROM 23GA TO
20 GA ON GS6809-52715.
COIL CORD WIRE GAGE CHANGED FROM 23GA TO
20GA ON GR09-14708 & GRC09-169.
K12 ADAPTER KIT FOR PCB MOUNTED K12
SWITCHES, PN T108044.
SEENEXT PAGE
COIL CORD REVISED TO 20GA.
GS3009A-99085
GS3209A-94764
GS4609A-95290
GS3011C-3011
GS3211C-738
GS4611C-448
FOR USE BEFORE S/N GR10-20102.
CLEAR ACTUATOR BUTTON UNDER DECAL IS
P/N 72254
2 WIRE HARNESS FOR THE ALARM IS PN 83140

Machines This Box Is Used On:
· GR-12 (from serial number GR-05001 to GR-19999)-->500 Platform Components
· GR-15 (from serial number GR-05001 to GR-19999)-->500 Platform Components
· GR-20 (from serial number GR-05001 to GR-19999)-->500 Platform Components
· GRC-12 (from serial number GRC08-101 to 999)-->500 Platform Components
· GS-1530 (from serial number GS3003-60000 to GS3005-75999)-->400 Platform Components
· GS-1530 (from serial number GS3005A-76000 to GS3010A-109999)-->400 Platform Components
· GS-1530 (from serial number GS3005B-76000 to GS3009B-98941)-->400 Platform Components
· GS-1530 (from serial number GS3008C-101 to GS3011C-9999)-->400 Platform Components
· GS-1532 (from serial number GS3003-60000 to GS3005-75999-->400 Platform Components
· GS-1532 (from serial number GS3005A-76000 to GS3010A-109999)-->400 Platform Components
· GS-1532 (from serial number GS3005B-76000 to GS3009B-98941)-->400 Platform Components
· GS-1532 (from serial number GS3008C-101 to GS3011C-9999)-->400 Platform Components
· GS-1930 (from serial number GS3003-60000 to GS3005-75999)-->400 Platform Components
· GS-1930 (from serial number GS3005A-76000 to GS3010A-109999)-->400 Platform Components
· GS-1930 (from serial number GS3005B-76000 to GS3009B-98941)-->400 Platform Components
· GS-1930 (from serial number GS3008C-101 to GS3011C-9999)-->400 Platform Components
· GS-1932 (from serial number GS3003-60000 to GS3005-75999)-->400 Platform Components
· GS-1932 (from serial number GS3005A-76000 to GS3010A-109999)-->400 Platform Components
· GS-1932 (from serial number GS3005B-76000 to GS3009B-98941)-->400 Platform Components
· GS-1932 (from serial number GS3008C-101 to GS3011C-9999)-->400 Platform Components
· GS-2032 (from serial number GS3204-60000 to GS3205-75406)-->400 Platform Components
· GS-2032 (from serial number GS3205-75407 to GS3211A-109999)-->400 Platform Components
· GS-2032 (from serial number GS3208C-101 to GS3212C-9999)-->400 Platform Components
· GS-2046 (from serial number GS4603-60000 to GS4605-75437)-->400 Platform Components
· GS-2046 (from serial number GS4605-75438 to GS4611A-109999)-->400 Platform Components
· GS-2046 (from serial number GS4609C-101 to GS4612C-9999)-->400 Platform Components
· GS-2632 (from serial number GS3204-60000 to GS3205-75406)-->400 Platform Components
· GS-2632 (from serial number GS3205-75407 to GS3211A-109999)-->400 Platform Components
· GS-2632 (from serial number GS3208C-101 to GS3212C-9999)-->400 Platform Components
· GS-2646 (from serial number GS4603-60000 to GS4605-75437)-->400 Platform Components
· GS-2646 (from serial number GS4605-75438 to GS4611A-109999)-->400 Platform Components
· GS-2646 (from serial number GS4609C-101 to GS4612C-9999)-->400 Platform Components
· GS-2668 DC (from serial number 41318)-->500 Platform Components
· GS-3232 (from serial number GS3205-75407 to GS3211A-109999)-->400 Platform Components
· GS-3246 (from serial number GS4603-60000 to GS4605-75437)-->400 Platform Components
· GS-3246 (from serial number GS4605-75438 to GS4611A-109999)-->400 Platform Components
· GS-3246 (from serial number GS4609C-101 to GS4612C-9999)-->400 Platform Components
· GS-3268 DC (from serial number 41318)-->500 Platform Components
· QS-12R (from serial number QS09-101 to QS11-999)-->500 Platform Components
· QS-12W (from serial number QS09-101 to QS11-999)-->500 Platform Components
· QS-15R (from serial number QS09-101 to QS11-999)-->500 Platform Components
· QS-15W (from serial number QS09-101 to QS11-999)-->500 Platform Components
· QS-20R (from serial number QS09-101 to QS11-999)-->500 Platform Components
· QS-20W (from serial number QS09-101 to QS11-999)-->500 Platform Components
